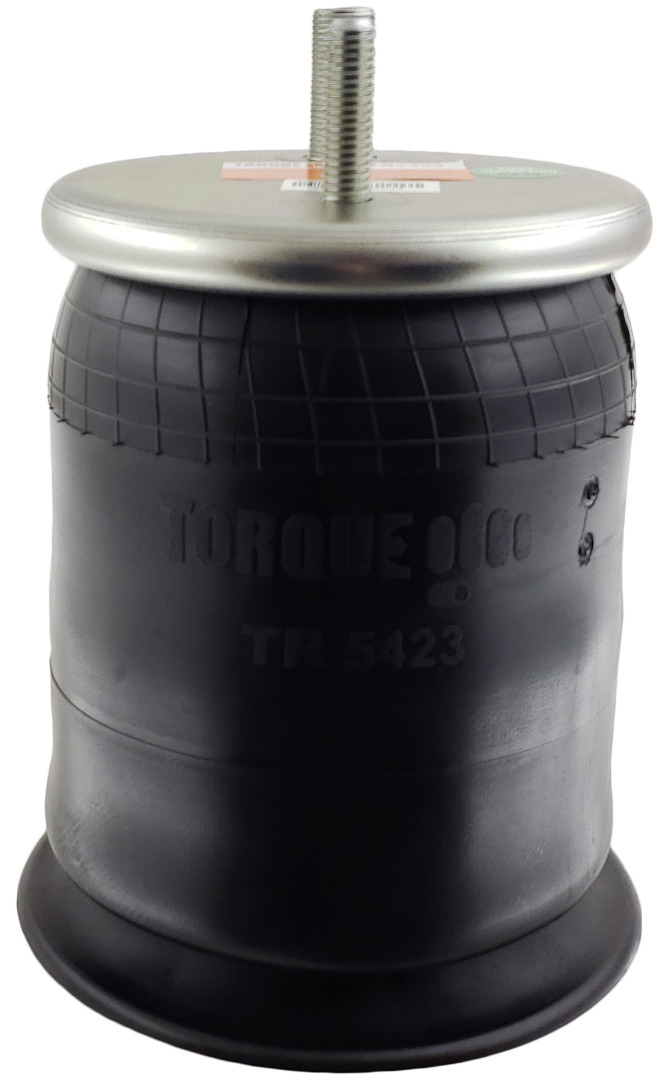

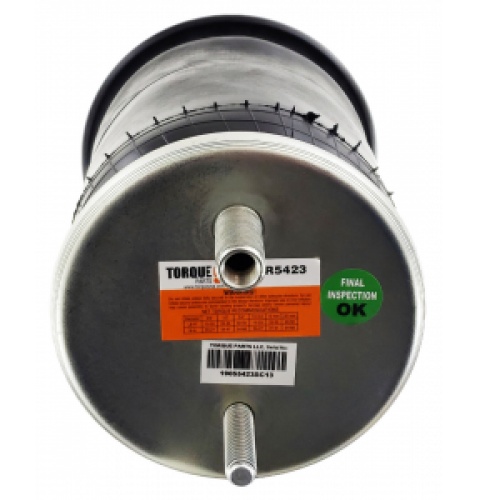

Trailer Air Spring
TR5423 Trailer Air Spring TR5423
Air Spring Type
Reversible Air Spring

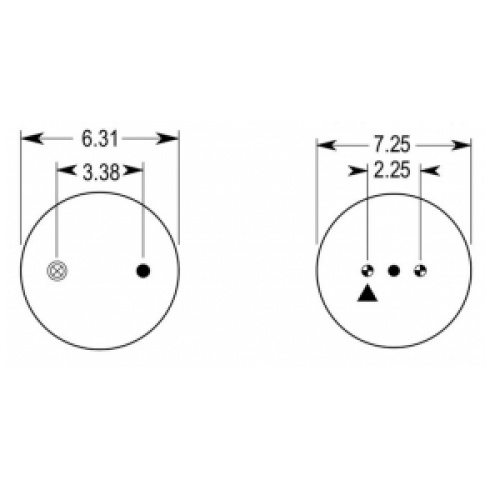

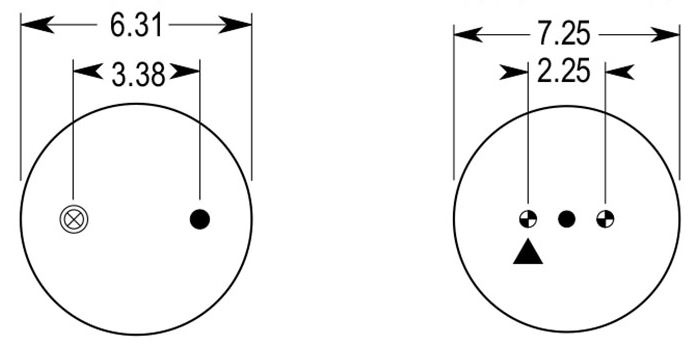

Top Plate Diameter
6.31
Piston Diameter
7.25

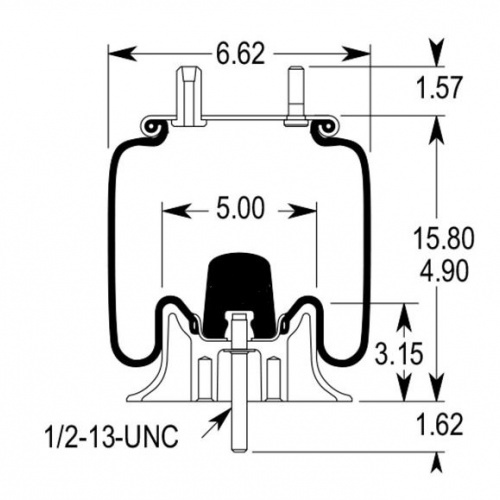

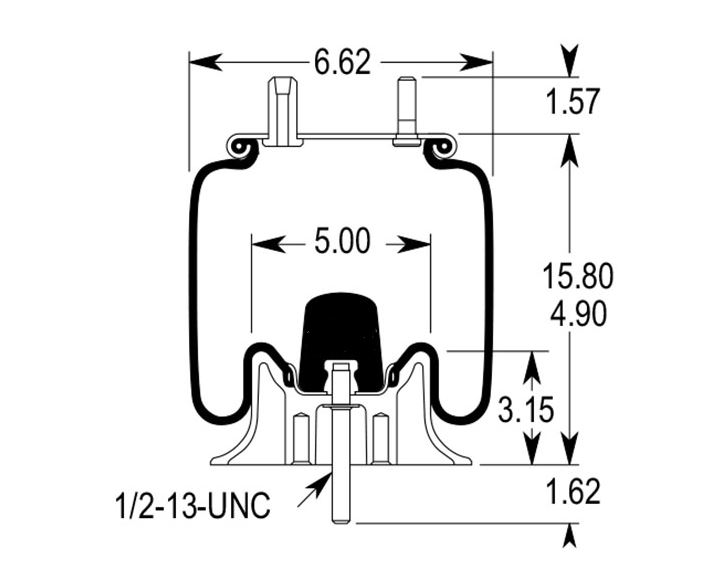

Bellows Diameter
6.62
Piston Height
3.15
Piston Material
Aluminum
Max Extended Height
15.80
Minimum Compressed Height
4.90
Air Inlet Type
Male
Air Inlet Height
1.57

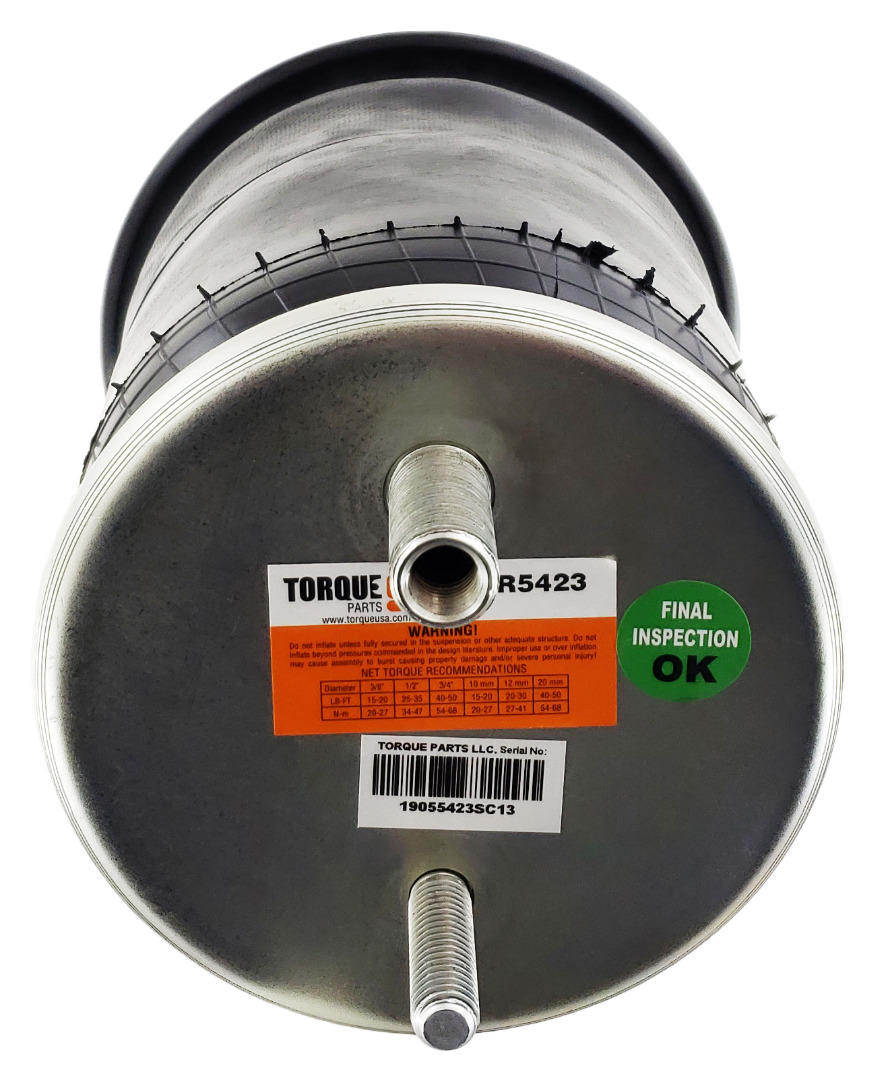

Top Plate Mounting Type
Air Inlet and Stud
Stud Quantity on Top Plate
1
Top Plate Stud Height
1.57
Distance between Top Plate Stud and Air Inlet
3.38

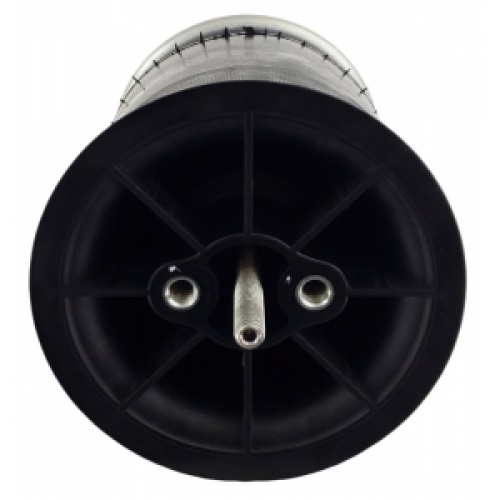

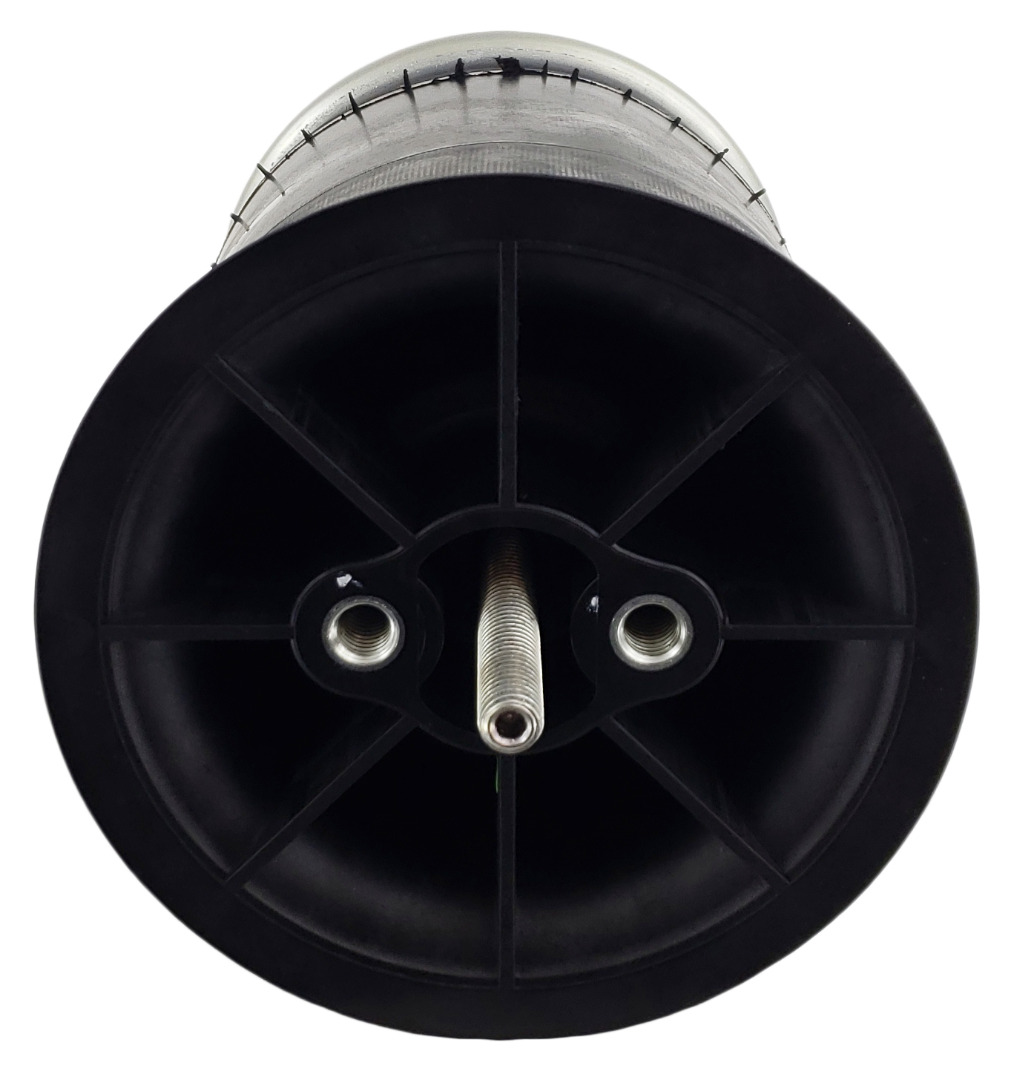

Piston Mounting Type
Stud and Threaded Hole
Piston Stud Quantity
1
Piston Threaded Hole Quantity
2
Distance Between Piston Threaded Holes
2.25
Has Inner Bumper
Yes
Bellows Number
1T14C3
| Granning: | 5235 & 5307 (no stud) |
| Rowe Truck: | ASC1500, ASCS1500, ASCS2000 |
| Lift Rowe Trailer: | ASCR1500, ASCST1500, ASCST2000 |
| Extended Height: | 15.80" |
| Compressed Height: | 4.90" |
| Top Plate Width: | 6.31" |
| Piston Width: | 7.25" |
| Weight: | 19.05 lbs |
