Convoluted Air Spring
TR6897 Convoluted Air Spring TR6897
Air Spring Type
Convoluted Air Spring

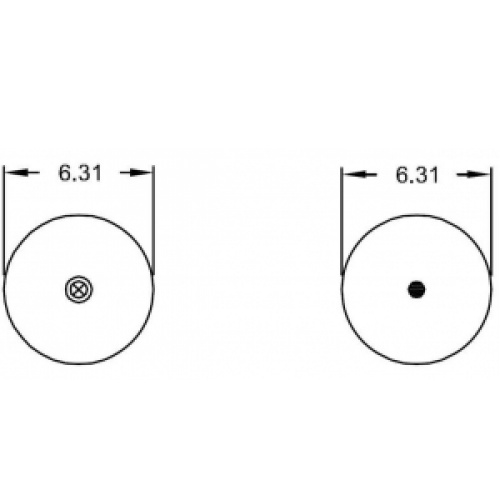

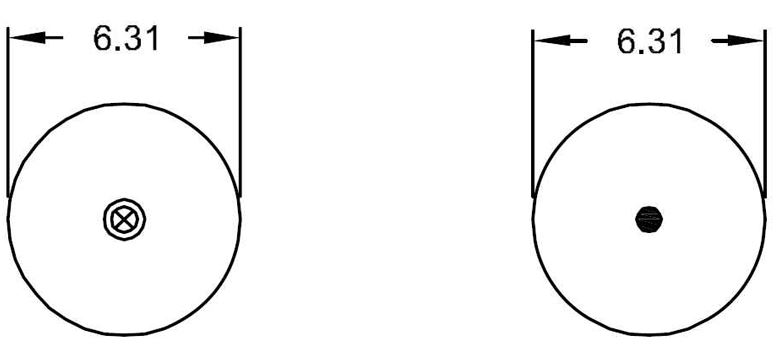

Top Plate Diameter
6.31
Piston Diameter
6.31

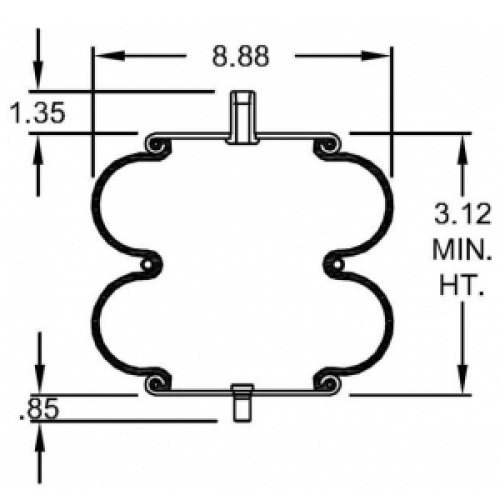

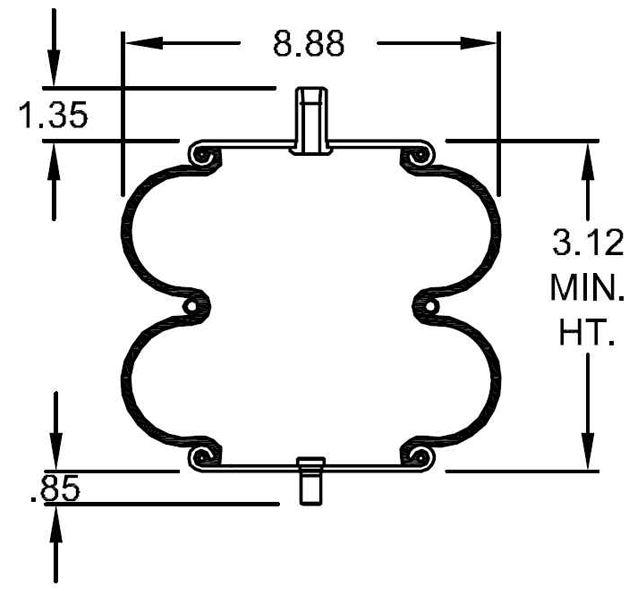

Bellows Diameter
8.88
Minimum Compressed Height
3.12
Air Inlet Type
Male
Air Inlet Height
1.35
Top Plate Mounting Type
Air Inlet
Piston Mounting Type
Stud
Piston Stud Quantity
1
Has Inner Bumper
No
Bellows Number
20
| Firestone: | W01-358-6897 |
| Watson & Chalin: | AS-0058 |
| Goodyear: | 2B9-229 |
| Triangle: | 4505 |
| Contitech: | FD200-19505 |
| Ridewell: | 1003586897C |
| Compressed Height: | 3.12" |
| Top Plate Width: | 6.31" |
| Piston Width: | 6.31" |
| Weight: | 6.40 lbs |
