Cabin Air Spring for Mack Trucks

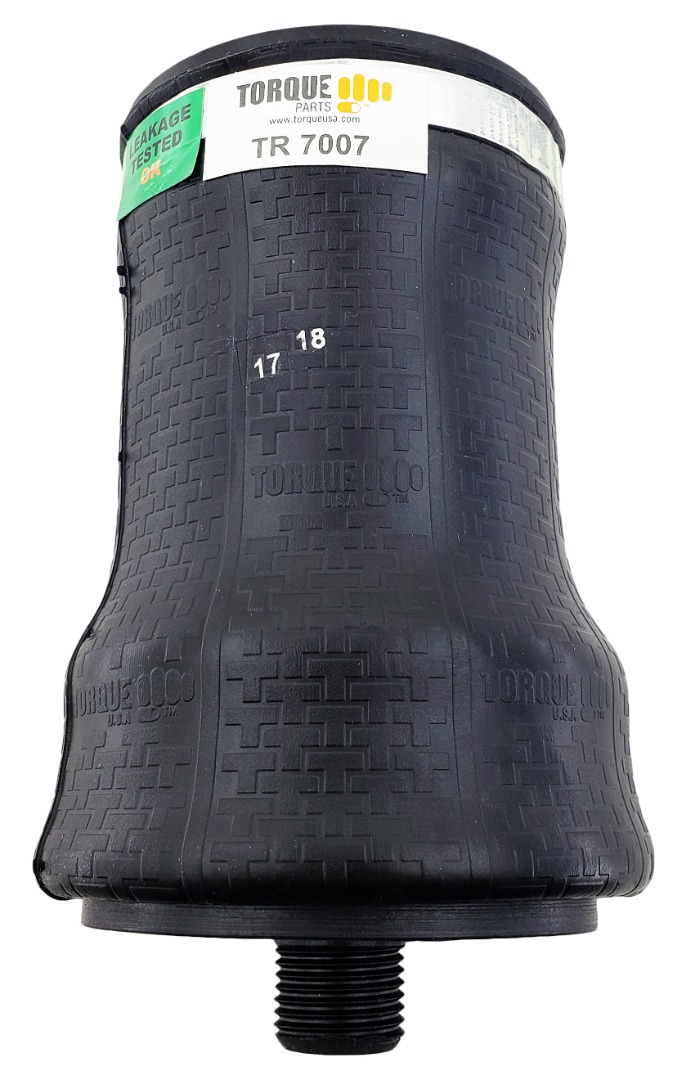

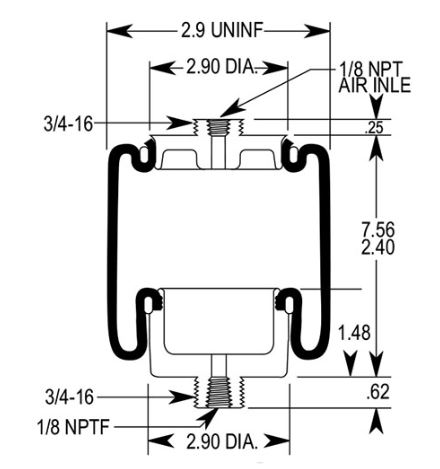

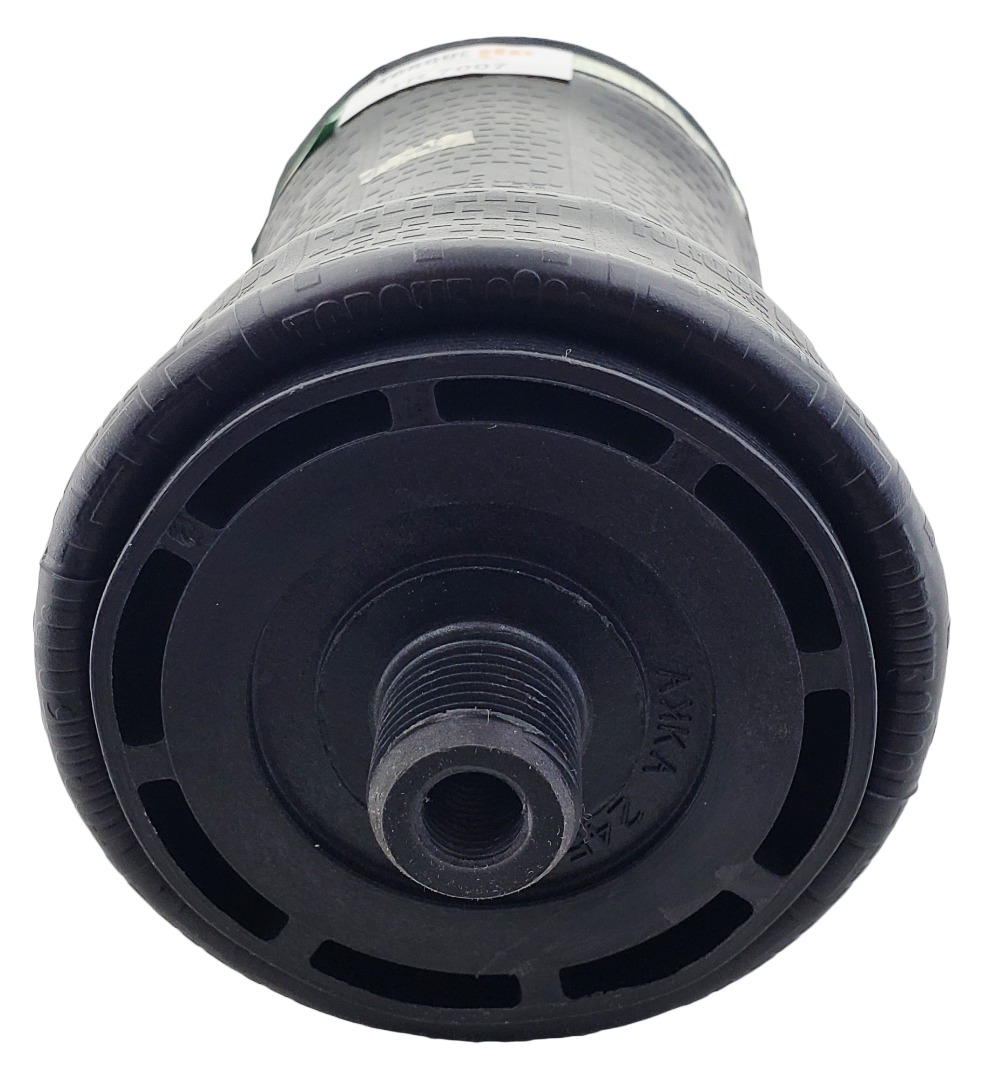

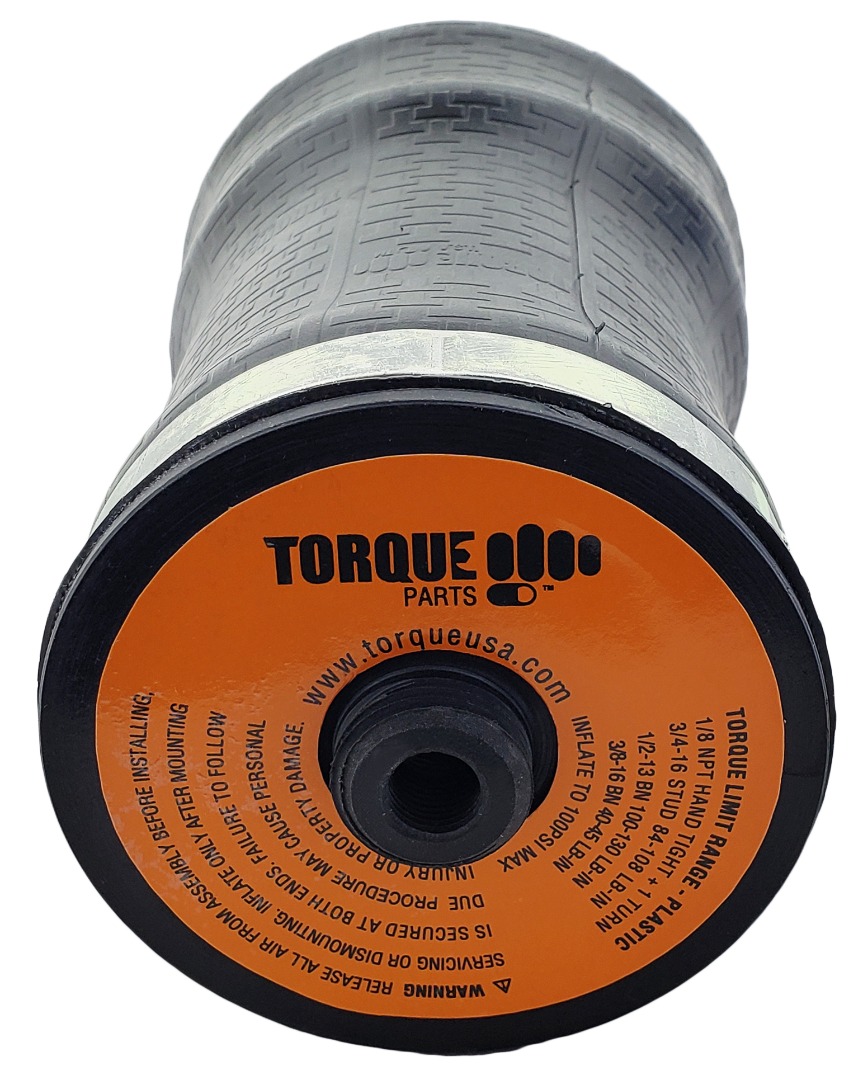

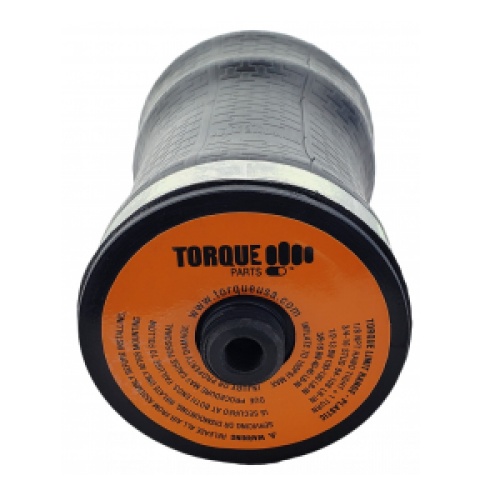

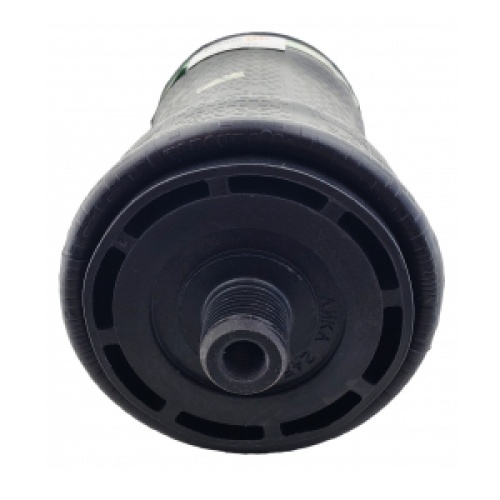

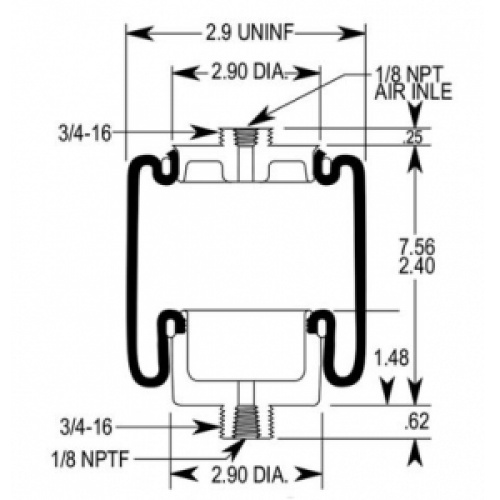

TR7007 Mack Cabin Air Spring TR7007
Air Spring Type
Cabin Air Spring
BCR
6.25
Top Plate Diameter
2.84
Piston Diameter
2.90
Bellows Diameter
2.90
Piston Height
1.48
Piston Material
Aluminum
Max Extended Height
7.56
Bottom Air Inlet Thread Size
1/8 NPTF
Minimum Compressed Height
2.40
Air Inlet Type
Male
Air Inlet Height
0.25
Top Plate Mounting Type
Air Inlet
Piston Mounting Type
Stud
Piston Stud Quantity
1
Has Inner Bumper
No
Bellows Number
RED
| Mack: | 227QS34 |
| Firestone: | W02-358-7007 |
| Goodyear: | 1S6-067 |
| Extended Height: | 7.56" |
| Compressed Height: | 2.40" |
| BCR: | 6.25" |
