TR7036 Peterbilt Cabin Air Spring TR7036

Contact Manufacturer

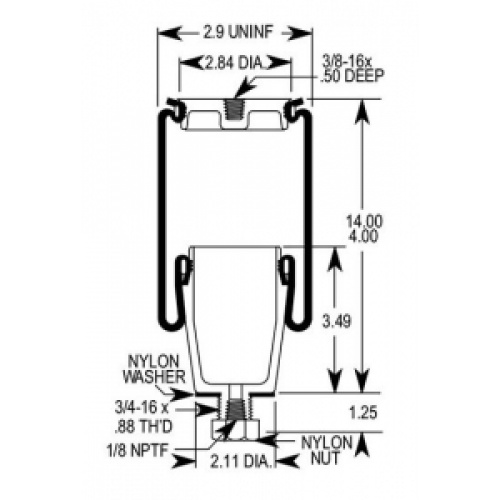

Air Spring Type Cabin Air Spring
BCR 10.00
Top Plate Diameter 2.84
Piston Diameter 2.28
Bellows Diameter 2.90
Piston Height 3.49
Piston Material Aluminum
Max Extended Height 14.00
Bottom Air Inlet Thread Size 1/8 NPTF
Minimum Compressed Height 4.00
Air Inlet Type Male
Air Inlet Height 1.25
Top Plate Mounting Type Threaded Hole
Top Plate Threaded Hole Quantity 1
Piston Mounting Type Stud
Piston Stud Quantity 1
Has Inner Bumper No
Bellows Number YELLOW
Air Springs
Torque Parts LLC Air Springs

Contact Manufacturer

+1 773 945 0060

Cabin Air Spring for Peterbilt Trucks
(UNI-BUILTHIGHWAY CAB/SLEEPER 1993 & LATER, UNI-BUILT FT SUPPORT SPRING 7155)

Peterbilt:  29-03200, T81-6000
Firestone:  W02-358-7036
Goodyear:  1S5-186
Contitech:  SC29-Y036,
Peterbilt: 29-02454, 29-03200
Triangle: AS-5036
Alliance: ABP N32 027036
Extended Height:  14.00"
Compressed Height:  4.00"
BCR:  10.00"
