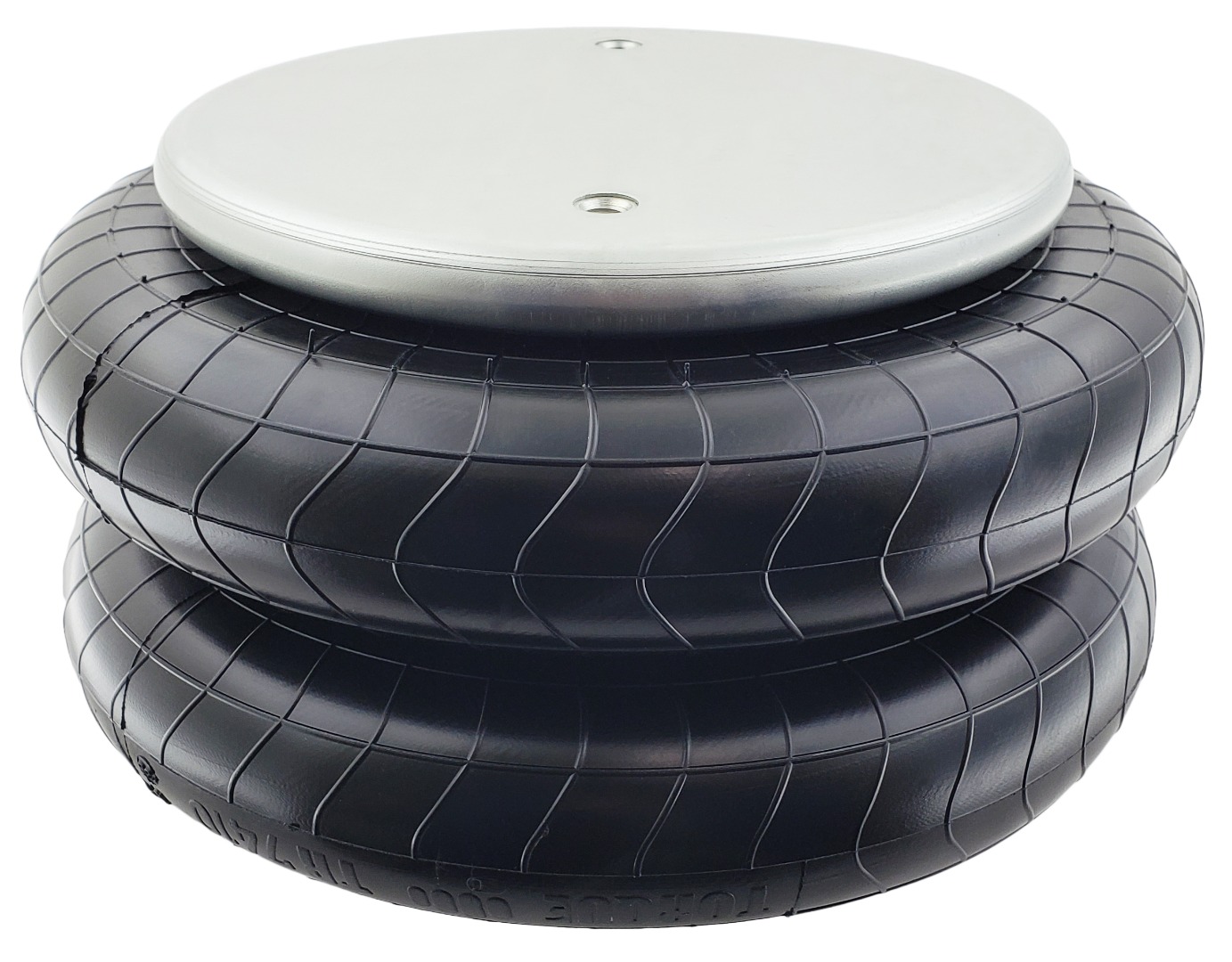

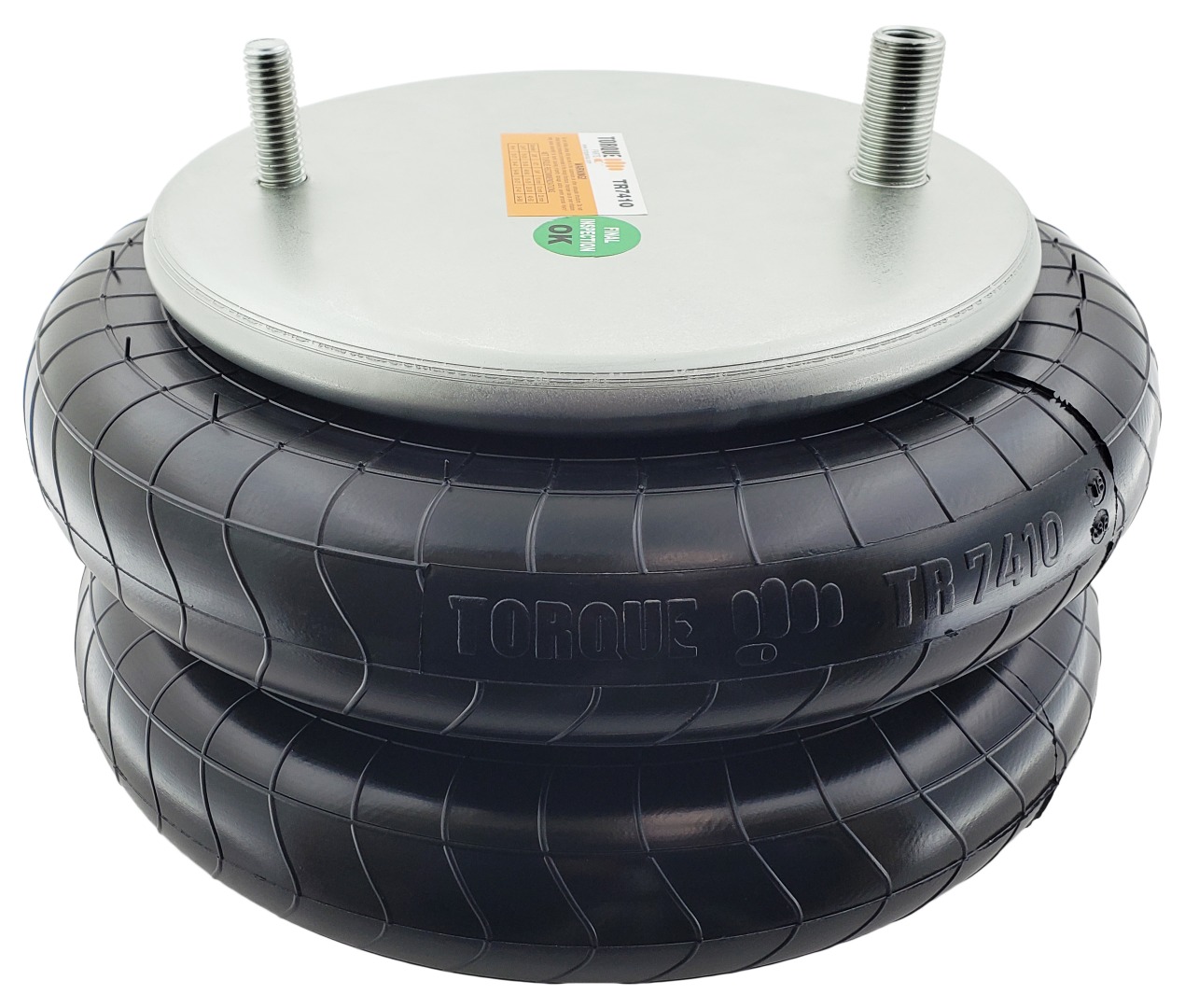

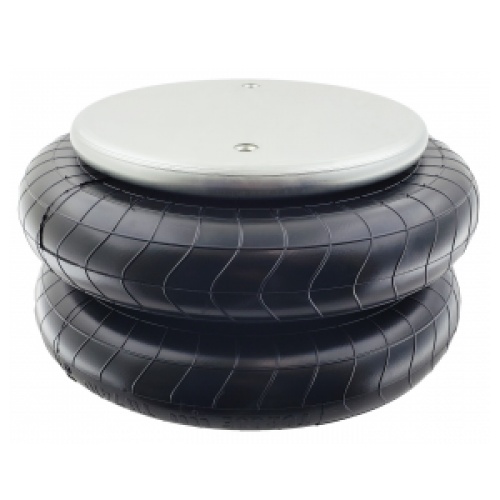

Convoluted Air Spring
TR7410 Convoluted Air Spring TR7410
Air Spring Type
Convoluted Air Spring

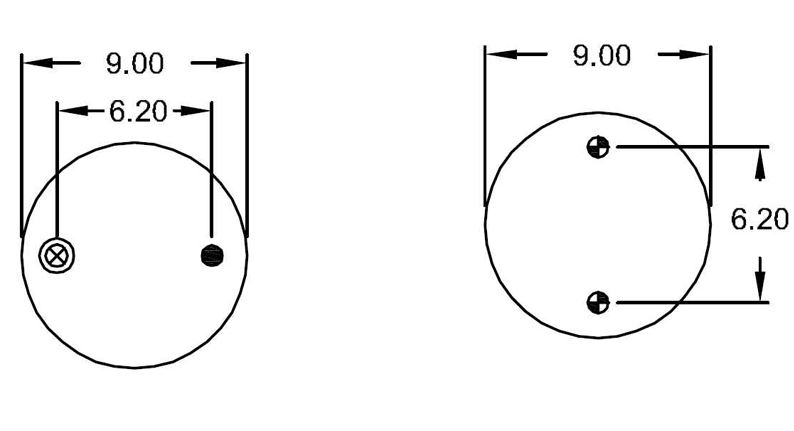

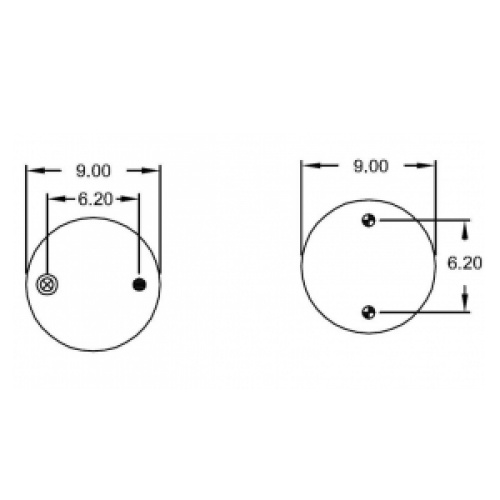

Top Plate Diameter
9.00
Piston Diameter
9.00

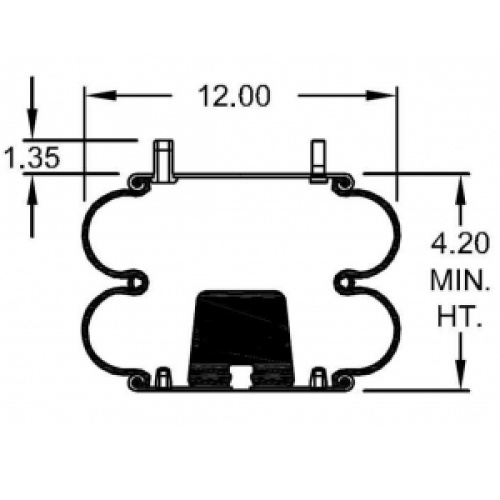

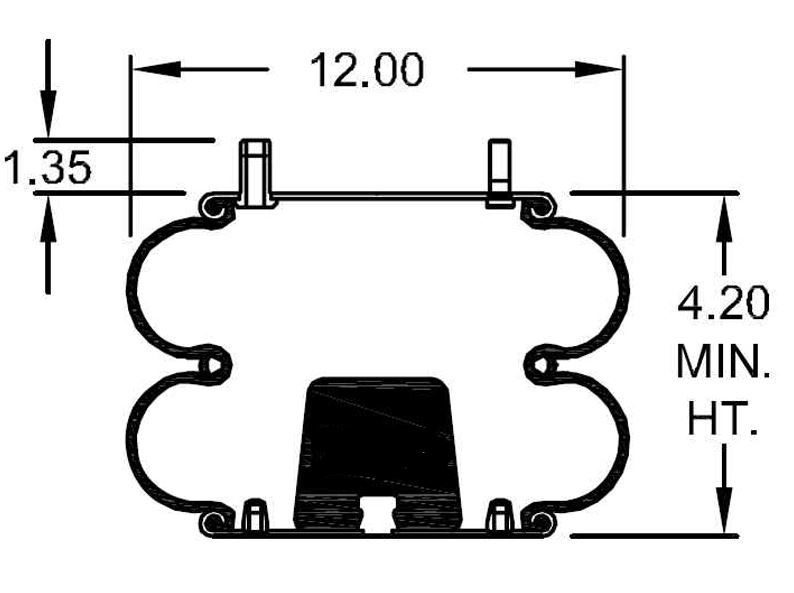

Bellows Diameter
12.00
Minimum Compressed Height
4.20
Air Inlet Type
Male
Air Inlet Height
1.35
Top Plate Mounting Type
Air Inlet and Stud
Stud Quantity on Top Plate
1
Top Plate Stud Height
1.35
Distance between Top Plate Stud and Air Inlet
6.20
Piston Mounting Type
Threaded Hole
Piston Threaded Hole Quantity
2
Distance Between Piston Threaded Holes
6.20
Has Inner Bumper
Yes
Bellows Number
22
| Freightliner: | 16-11378-000 |
| Navistar: | 554792C1 |
| Triangle: | 4331 |
| Firestone: | W01-358-7410 |
| Goodyear: | 2B12-406 |
| Contitect: | FD 330-22 331 |
| Compressed Height: | 4.20" |
| Top Plate Width: | 9.00" |
| Piston Width: | 9.00" |
| Weight: | 17 lbs |
