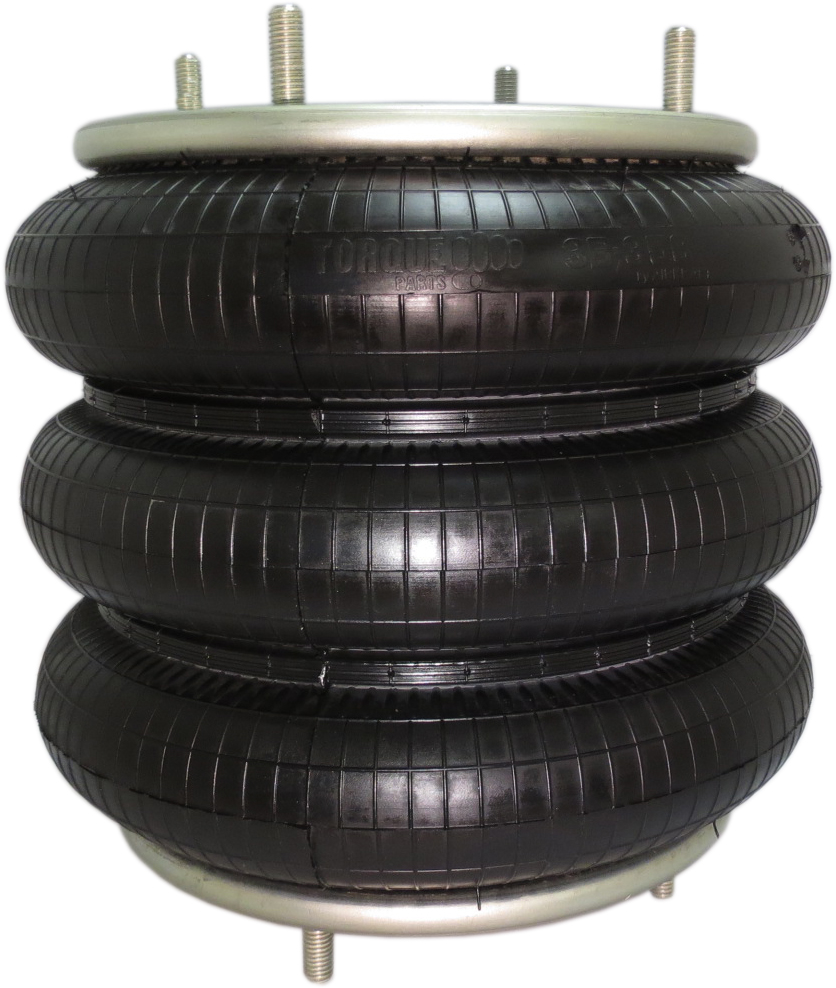

Convoluted Air Spring
TR7818 Convoluted Air Spring TR7818
Air Spring Type
Convoluted Air Spring
Top Plate Diameter
11.31
Piston Diameter
11.31

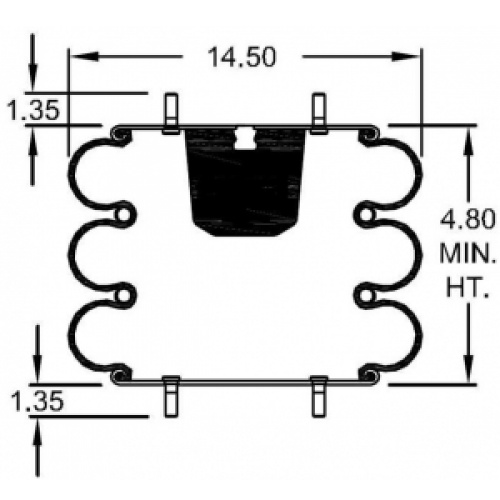

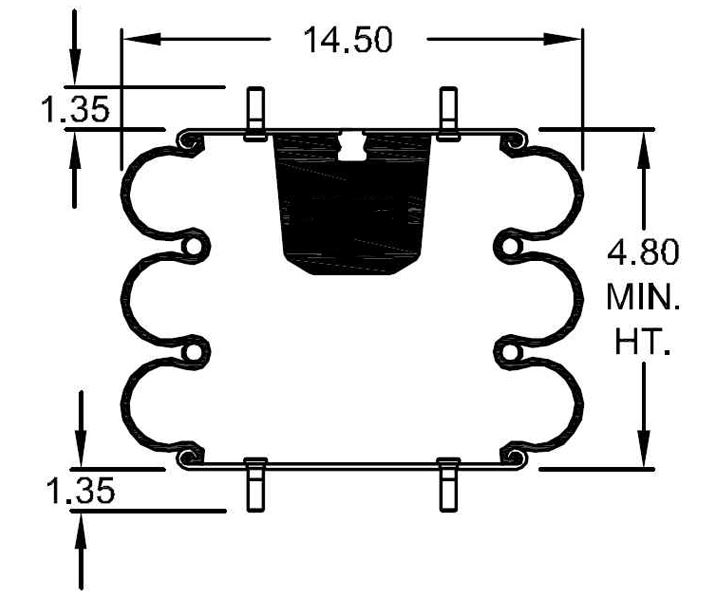

Bellows Diameter
14.50
Minimum Compressed Height
4.80
Air Inlet Type
Female
Top Plate Mounting Type
Stud
Stud Quantity on Top Plate
4
Top Plate Stud Height
1.35

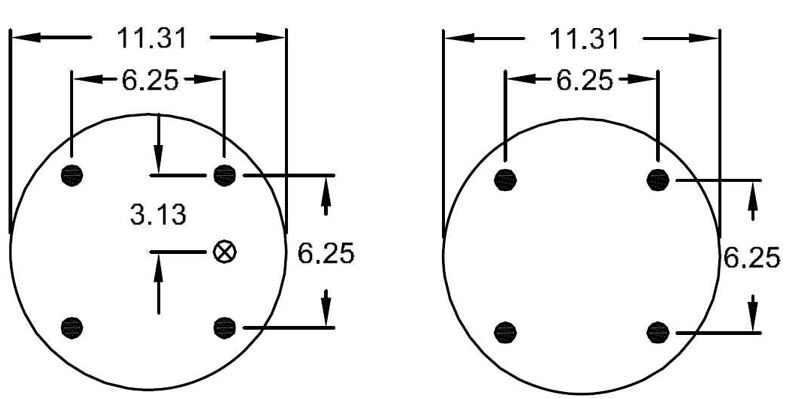

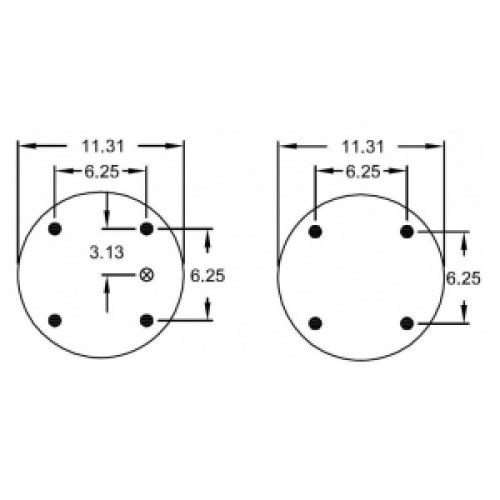

Distance Between Top Plate Studs
6.25
Piston Mounting Type
Stud
Piston Stud Quantity
4
Distance Between Bottom Base Studs
6.25
Has Inner Bumper
Yes
Bellows Number
313
| Hendrickson: | 13041 |
| Triangle: | 4325 |
| Granning: | 1014 |
| Ridewell: | 1003587818C |
| Watson & Chalin: | AS-0025 |
| Firestone: | W01-358-7818, W01-358-7839 |
| Goodyear Part: | 3B14-35 |
| Contitech: | FT 530-32 325 |
| Compressed Height: | 4.80" |
| Top Plate Width: | 11.31" |
| Piston Width: | 11.31" |
| Weight: | 18.2 lbs |
