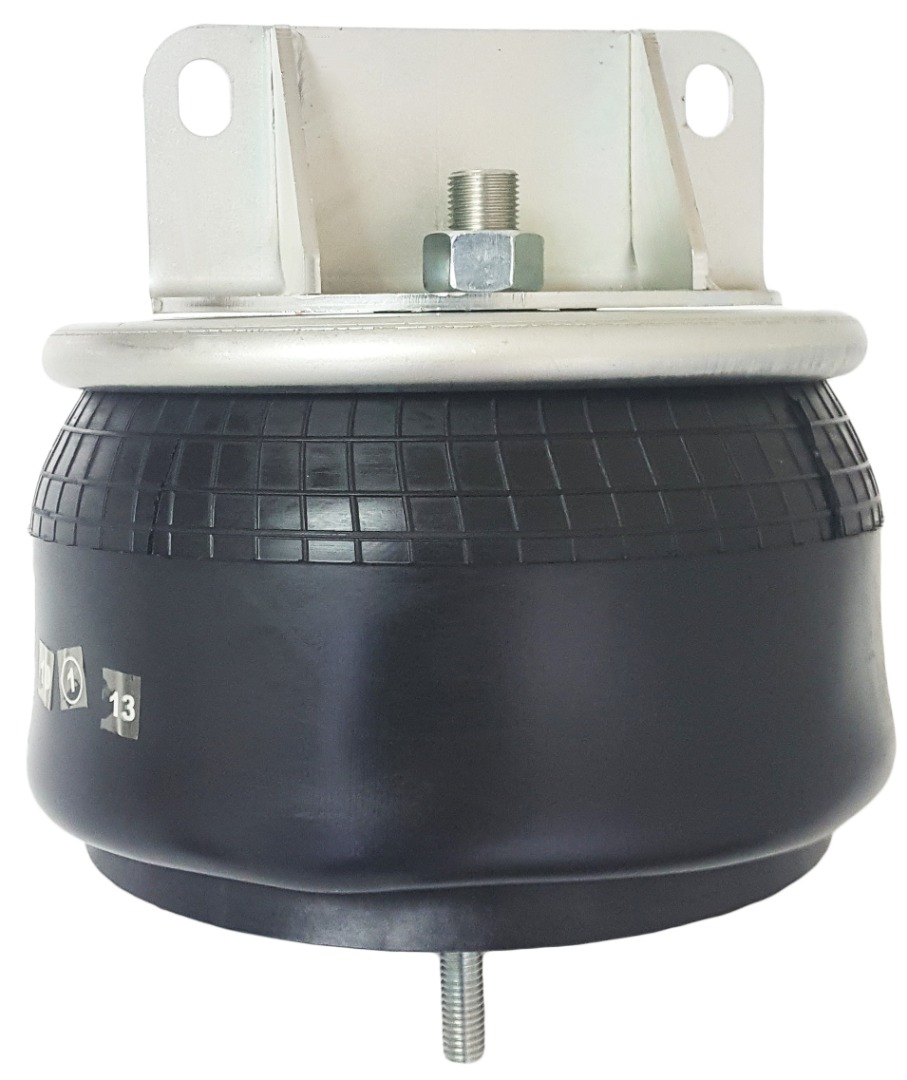

Air Spring for Kenworth Trucks
TR9617 Kenworth Air Spring TR9617

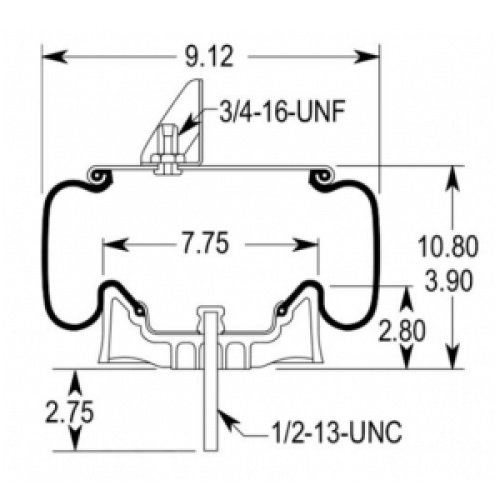

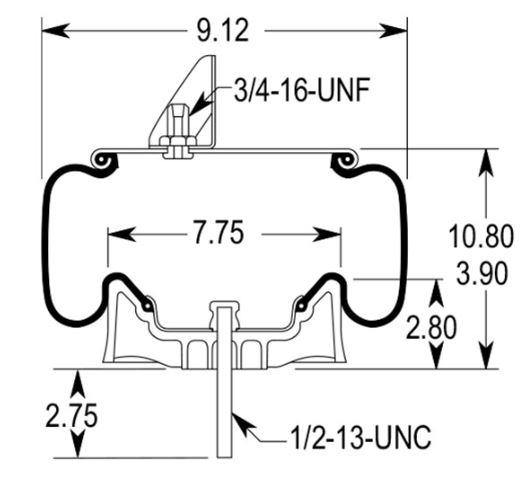

Air Spring Type
Reversible Air Spring

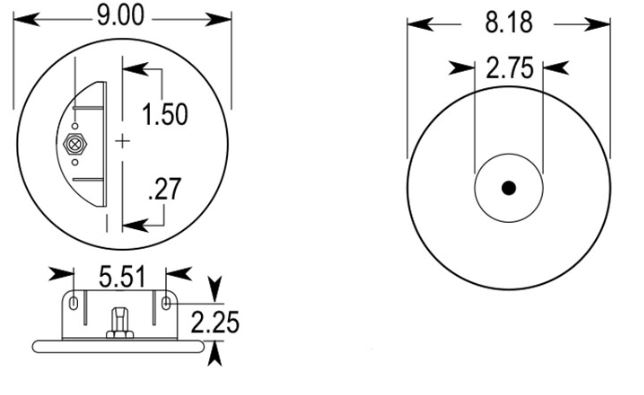

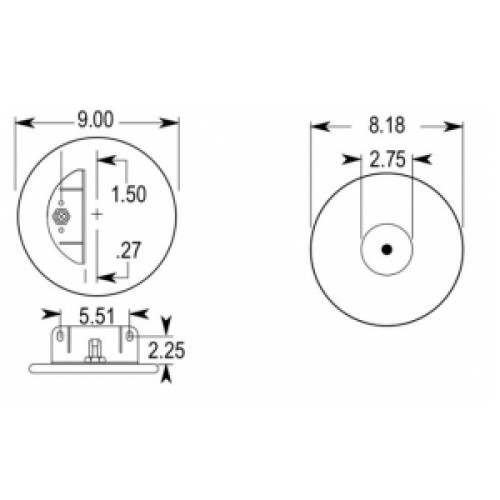

Top Plate Diameter
9.00
Piston Diameter
8.18
Bellows Diameter
9.12
Piston Height
2.80
Piston Material
Composite
Max Extended Height
11.00
Minimum Compressed Height
3.90
Air Inlet Type
Male
Top Plate Mounting Type
Bracket
Piston Mounting Type
Stud
Piston Stud Quantity
1
Has Inner Bumper
No
Bellows Number
1T15LA(-1)
| Kenworth: | K-303-18 |
| Firestone: | W01-358-9617 |
| Goodyear: | 1R11-219 |
| Triangle: | 8514 |
| Contitech: | 99-9P860 |
| Extended Height: | 11.00" |
| Compressed Height: | 3.90" |
| Top Plate Width: | 9.00" |
| Piston Width: | 8.18" |
| Weight: | 12.00 lbs |
